Dual Hook Corrugated molder heads 1-1/4

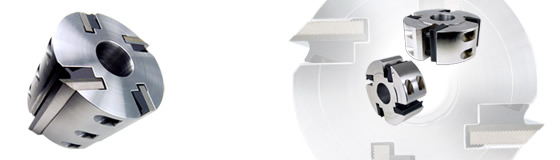

Straight Bore Corrugated Moulder Heads: 1.25" Bore, 100mm (4") O.D.
The 100mm line, 4" body diameter, is designed for spindle shapers and most smaller non-jointed moulders. These heads offer the flexibility to use corrugated knife steel with high rpm roation to cut either hardwood or softwoods with the same head body. Our dual cutting angle moulder heads have 2 corrugated knife pockets at a 12 degree cutting angle for hardwood to reduce raised grain and 2 corrugated knife pockets at a 20 degree cutting angle to reduce fuzzing in softwoods. It is like getting two heads for the price of one! This is the best choice for custom millwork producers who need the flexiblity to handle any job at a moments notice without having to stock many different cutterheads. Filler wedges for the empty un-used pockets are required. All heads are precision CNC machined from high strength steel & ISO GQ 1.0 balanced to 9,000 rpm. Heads exceed stringent European OEM standards to produce smooth material finishes with years of trouble free use. We also offer single hook heads in 10, 12, 15, or 20 degrees or a combination. T-bushings are available for shapers with 1" diameter spindles. Call for custom combinations of cutting angles, outer diameters, and bore sizes not listed below.
For Shapers, Moulders: Dual Hook 12 / 20 Degree - 1.25" Bore - 100mm Outer Diameter
CGG Schmidt 3" tall dual hook angle 12 / 20 degree corrugated shaper moder knife head
For Large Shapers & Small Moulders Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically works well. diameter- 100mm (3.9") cutting edge length- 3" 5mm T-wrench 1-..
CGG Schmidt 4" tall dual hook angle 12 / 20 degree corrugated shaper moder knife head
For Large Shapers & Small Moulders Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically works well. diameter- 100mm (3.9") cutting edge ..
CGG Schmidt 6" tall dual hook angle 12 / 20 degree corrugated shaper molder knife head
For Large Shapers & Small Moulders Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically works well. diameter- 100mm (3.9") cutting edge length-..
Titan 100mm shaper molder corrugated head dual 12/20 hook 4 knife 1-1/4
NEW 4 knife corrugated back shaper head Dual 12 and 20 degree hook 100mm (3.94") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications..
Titan 150mm shaper molder corrugated head dual 12/20 hook 4 knife 1-1/4
Outer Diameter - 100 mm (4")Cutting Length - 150 mm (5.91")Bore - 1-1/4"Corrugated Knife Pockets - 4Cutting Angle (Hook) - 2 Pockets at 12 Degree, 2 Pockets at 20 DegreeBrand - Titan KnifeShapers, Paulson, XL, and Import Brand Moulders:The S100 dual hook line is designed for spindle shapers and most smaller non-jointed moulders. Bore bushings are a..
Titan 50mm shaper molder corrugated head dual 12/20 hook 4 knife 1-1/4
NEW 4 knife corrugated back shaper head Dual 12 and 20 degree hook 50mm (1.96") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typic..
Titan 60mm shaper molder corrugated head dual 12/20 hook 4 knife 1-1/4
NEW 4 knife corrugated back shaper head Dual 12 and 20 degree hook 60mm (2.36") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typical..
Titan 80mm shaper molder corrugated head dual 12/20 hook 4 knife 1-1/4
NEW 4 knife corrugated back shaper head Dual 12 and 20 degree hook 80mm (3.15") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typical..
