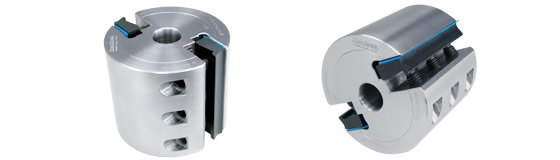

Single Hook Corrugated molder head 3/4
3/4" Bore - 76mm (3") Outer Diameter - 15 Degree Hook
Designed for spindle shapers and most smaller non-jointed moulders. These heads offer the flexibility to use corrugated knife steel with high rpm roation.
All heads are precision CNC machined from high strength steel & ISO GQ 1.0 balanced to 9,000 rpm.
Heads exceed stringent European OEM standards to produce smooth material finishes with years of trouble free use.
Byrd cutter head for corrugated knives 1'' cut length 3-1/2'' Diameter, Bore 1'' 3 knives
For Shapers & Small Moulders 3 Knife Steel Cutter Heads for 1" spindles. 20 degree hook angle 3-1/2" Diameter 1" cut length 16-60° corrugations Uses 1/4", or 5/16" corrugated back steel..
Byrd cutter head for corrugated knives 2'' cut length 3'' Diameter, Bore 3/4'' ,2 knives
For Shapers 2 Knife Steel Cutter Heads for 3/4" spindles. 3" Diameter 2" cut length 16-60° corrugations Uses 1/4", 5/16"corrugated back steel..
Byrd cutter head for corrugated knives 3'' cut length 3'' Diameter, Bore 3/4'' ,2 knives
For Shapers 2 Knife Steel Cutter Heads for 3/4" spindles. 3" Diameter 3" cut length 16-60° corrugations Uses 1/4", 5/16"corrugated back steel..
Byrd cutter head for corrugated knives 3'' cut length 3-1/2'' Diameter, Bore 1'' ,2 knives
For Shapers 2 Knife Steel Cutter Heads for 1" spindles. 3-1/2" Diameter 3" cut length 16-60° corrugations Uses 1/4", 5/16"corrugated back steel..
Byrd cutter head for corrugated knives 3'' cut length 3-1/2'' Diameter, Bore 1'' 3 knives
For Shapers & Small Moulders 3 Knife Steel Cutter Heads for 1" spindles. 20 degree hook angle 3-1/2" Diameter 3" cut length 16-60° corrugations Uses 1/4", or 5/16" corrugated back steel..
CGG Schmidt & Co MH233P6 shaper molder corrugated head 3" cut 2 knife 3/4" Bore
New 2 knife corrugated back shaper moulder head 3/4" Bore 3" cut Length 2-3/4" x 3" x 3/4" Major Diameter- 70mm ( 2-3/4") Cutting Edge Length- 80mm ( 3") Bore- 3/4" 15 degree hook angle, good choice for the combination of both soft (higher hook 20 degrees) and hard woods (lower hook 10 degrees) 2 knife model uses 1/4"..
CGG Schmidt & Co shaper molder corrugated head 2" cut 2 knife 1" bore
NEW!!! 20 degree hook diameter- 3-1/2" cutting edge length-50mm (2") wrench included 1" straight bore balanced can run 1/4", 5/16" (6mm-8mm) corrugated back steel 16-60 degree corrugations Made in USA..
CGG Schmidt & Co shaper molder corrugated head 2" cut 2 knife 3/4" bore
NEW!!! 15 degree hook diameter- 2-3/4" cutting edge length- 2" wrench included 3/4" straight bore balanced can run 1/4", 5/16" (6mm-8mm) corrugated back steel 16-60 degree corrugations Made in USA..
CGG Schmidt & Co shaper molder corrugated head 3" cut 2 knife 1" bore
NEW!!! 20 degree hook diameter- 3-1/2" cutting edge length- 80mm (3") wrench included 1" straight bore balanced can run 1/4", 5/16" (6mm-8mm) corrugated back steel 16-60 degree corrugations Made in USA..
CGG Schmidt & Co shaper molder corrugated head 4" cut 2 knife 1" bore
NEW!!! 20 degree hook diameter- 3-1/2" cutting edge length (4") wrench included 1" straight bore balanced can run 1/4", 5/16" (6mm-8mm) corrugated back steel 16-60 degree corrugations Made in USA..
Titan 50mm shaper molder corrugated head 15 degree hook 2 knife 3/4"
NEW 2 knife corrugated back shaper head 15 degree hook 50 mm Cutting Length NEW!!! 15 degree hook diameter- 76mm (3.0") cutting edge length- 50mm (1.96") wrench included 3/4" straight bore balanced can run 1/4", 5/16" (6mm-8mm) corrugated back steel 16-60 degree corrugations Made by Titan /import..
Titan 80mm shaper molder corrugated head 15 degree hook 2 knife 3/4"
NEW 2 knife corrugated back shaper head 15 degree hook 80mm Cutting Length NEW!!! 15 degree hook diameter- 76mm (3.0") cutting edge length- 80mm (3.15") wrench included 3/4" straight bore balanced can run 1/4", 5/16" (6mm-8mm) corrugated back steel 16-60 degree corrugations Made by Titan /import..
