Dual Hook 12 / 20 Degree

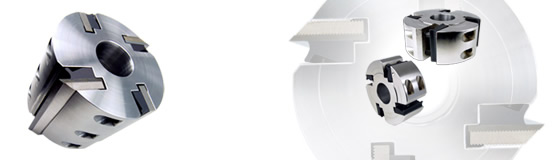

The 122mm line, 4.80" body diameter, is designed for use on most European and Asian imported moulders using industry standard features and metric hardward. Plus, we have added features not offered by the German tool makers such as a high alloy strong tool steel body for greater tool life and deeper knife pockets to allow wider and thicker steel to be used for additional resharpenings. Our dual cutting angle moulder heads have 2 corrugated knife pockets at a 12 degree cutting angle for hardwood to reduce raised grain and 2 corrugated knife pockets at a 20 degree cutting angle to reduce fuzzing in softwoods. It is like getting two heads for the price of one! This is the best choice for custom millwork producers who need the flexibility to handle any job at a moments notice without having to stock many different cutter heads. Filler wedges for the empty un-used pockets are required. All heads are precision CNC machined from high strength steel & ISO GQ 1.0 balanced to 9,000 rpm. Heads exceed stringent European OEM standards to produce smooth material finishes with years of trouble free use. We also offer single hook heads in 10, 12, 15, or 20 degrees or a combination. Call for custom combinations of cutting angles, outer diameters, and bore sizes not listed below.
For Weinig, Wadkin, SCMI, Ilda, LeaderMac, Woodmizer, Silver & other Mid-Sized Moulders:
Titan 100mm molder corrugated head dual 12/20 hook 4 knife 40mm or 1.50" Bore
NEW 4 knife corrugated back head Dual 12 and 20 degree hook 100mm (3.94") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically ..
Titan 130mm molder corrugated head dual 12/20 hook 4 knife 40mm or 1.50" Bore
NEW 4 knife corrugated back head Dual 12 and 20 degree hook 130mm (5.12") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically ..
Titan 150mm molder corrugated head dual 12/20 hook 4 knife 40mm or 1.50" Bore MH-122-4-150D
Outer Diameter - 122 mm (4.8") Cutting Length - 150 mm (5.91") Bore - 40 mm or 1-1/2" (Choose One) Corrugated Knife Pockets - 4 Cutting Angle (Hook) - 2 Pockets at 12 Degree, 2 Pockets at 20 Degree Brand - Titan Knife Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft..
Titan 180mm molder corrugated head dual 12/20 hook 4 knife 40mm or 1.50" Bore
NEW 4 knife corrugated back head Dual 12 and 20 degree hook 180mm (7.08") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically ..
Titan 230mm molder corrugated head dual 12/20 hook 4 knife 40mm or 1.50" Bore
NEW 4 knife corrugated back head Dual 12 and 20 degree hook 230mm (9.05") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically ..
Titan 50mm molder corrugated head dual 12/20 hook 4 knife 40mm or 1.50" Bore
NEW 4 knife corrugated back head Dual 12 and 20 degree hook 50mm (1.96") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically w..
Titan 60mm molder corrugated head dual 12/20 hook 4 knife 40mm or 1.50" Bore
NEW 4 knife corrugated back head Dual 12 and 20 degree hook 60mm (2.36") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically w..
Titan 80mm molder corrugated head dual 12/20 hook 4 knife 40mm or 1.50" Bore
NEW 4 knife corrugated back head Dual 12 and 20 degree hook 80mm (3.15") Cut Length NEW!!! Dual hook 12 and 20 When you have tearout problems, run the 12 degree hook side chestnut, cottonwood, cypress, elm(soft), hickory, maple, redwood, walnut, sycamore ,magnolia, pecan, & some plastics.for most other applications 20 typically w..
